Tire bead seaters

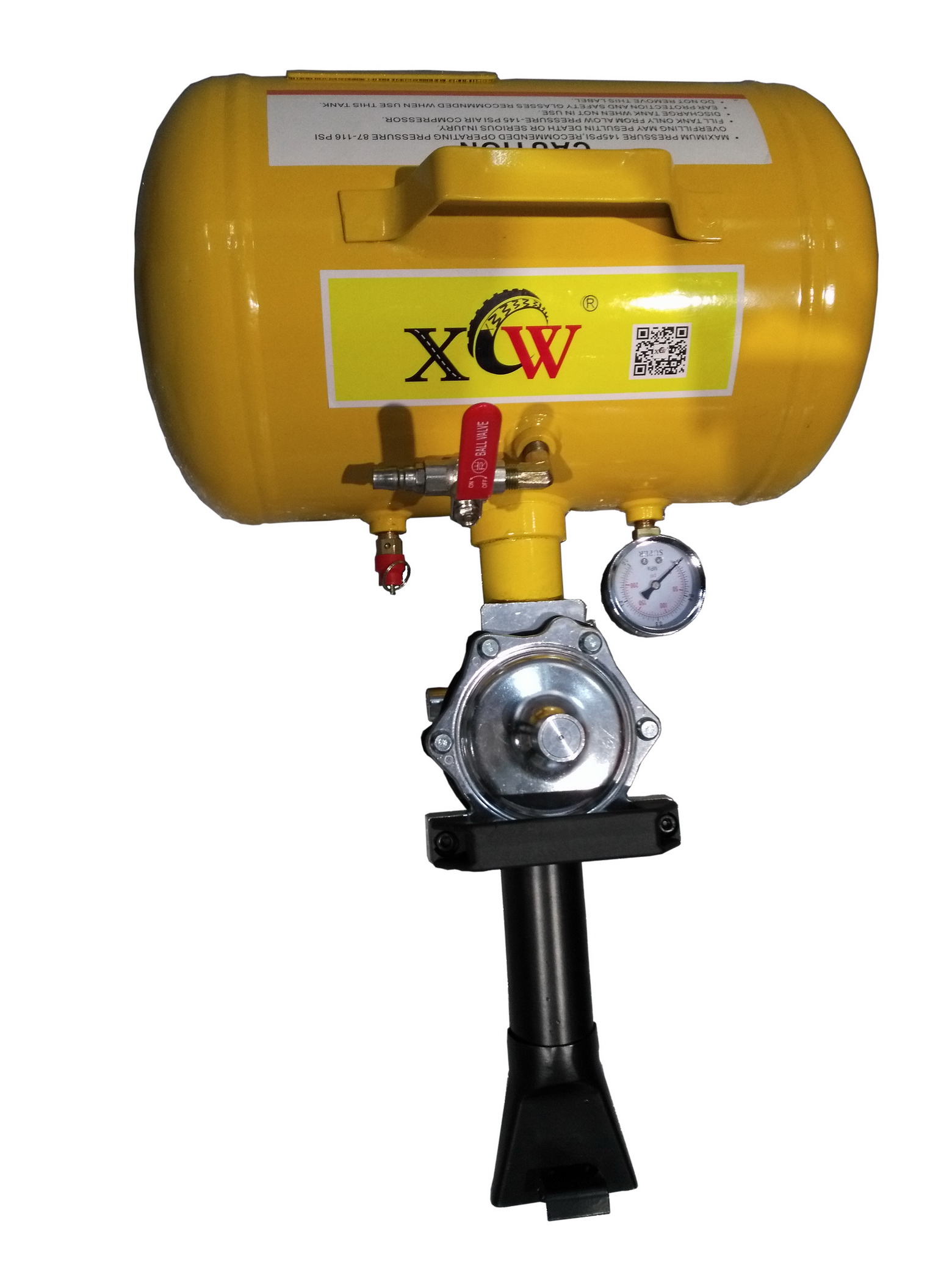

ProductName:New design tire bead seater pneumatic
ProductNo:XW-5+++
ProductModel:XW-5+
Maker:Guangzhou Icare Technical Co., Ltd.
 Click to view big picture

New design tire bead seater, Pneumatic valve inside.

This air bead seater is designed for seating tires on bead of rim
The model can work on tire for up to 24.5-inches
Anti-rust powder coating
The desigh of button switch & exhaust valve, More convenient operation.
Pressure meter exactly display the pressure in tank
Pressure relief valve procection for tank pressure
To empty the air from the pump when move the pump or non-use.
The operator is suggested to wear ear protector and protection eyeglass when operating



Technical index



result

Capacity of tank

5 gallon (18 Liter)

Tank material

Carbon steel

Valve

ball valve

Working pressure

80 psi to 120 psi

Tank thick

3mm

Max damage pressure

>300 psi

Packing size

42*36*30cm
